Inner interpreter

On to the next BMAD task: 1.2 - inner interpreter and threading.

We /bmad-bmm-create-story 1-2 to create the next story that will guide Claude’s development. We got story 1-2 for free last time as part of the initial planning process, but from here on in we generate stories on-demand just before we need them. This helps the overall development workflow adapt to changes in direction caused by discoveries and pivots in ongoing development. It’s preferable to trying to nail all the stories down in one go at the outset, as not all developmental challenges can be anticipated.

This produces a document in _bmad-output/implementation-artificats/1-2-inner-interpreter-and-threading.md which will be Claude’s development plan. We must review the story carefully, and manually address any problems. Once we’re happy we can kick off the development with /bmad-bmm-dev-story 1-2 and once that is complete we will /reset/ Claude to get a fresh context and start a code review with /bmad-bmm-code-review 1-2.

There are a couple of minor issues which we elect to fix automatically.

Finally, we’ve got an actual working test:

But how’s that actually doing anything? We don’t have an interpreter yet!

inner_interpreter.asm

In Forth, the thing that executes “programs” is called the outer interpreter, and while we don’t have that yet we do have a bare bones inner interpreter: this is the code that can execute sequences of Forth words.

A Forth word is either z80 machine code that gets executed directly, or it’s a very specific bit of machine code called DOCOL that knows how to execute sequences of other Forth words. So you build Forth words from other Forth words, and some of those words might be machine code primitives.

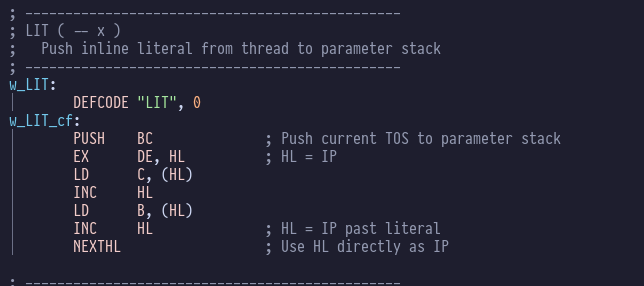

In our barebones inner interpreter, we’ve now got some basic primitives like LIT:

Here w_LIT is the header for the word (the header permits it to be linked into the dictionary of all Forth words), and w_LIT_cf is the actual code that gets implemented when LIT is used (the ‘_cf’ means “code field”).

LIT is what compiles a literal (like the 2 in : DOUBLE 2 * ) into a word. It does this by taking the next argument after the LIT, let’s say 2, and sticking that on the top of the parameter stack, adjusting IP to move past the 2.

The code might look a little weird, but this is because we are using an optimisation and keeping our TOS (Top of Stack) in register BC, while the z80 stack holds the rest of the parameter stack. So that first PUSH BC moves TOS onto the z80 stack, and then we fetch a new value into BC, or into the new Top-of-Stack in other words.

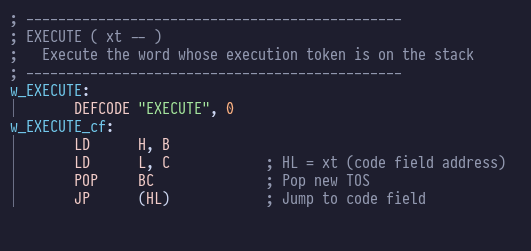

We also have this definition for EXECUTE:

This takes an “xt” (eXecution Token - a pointer to a function) from the parameter stack and executes it. We now know that the top of our parameter stack is in BC, so all we need to do is move BC into HL so that we can jump to it.

There are a couple of other new definitions (BRANCH, ?BRANCH) which we’ll gloss over for now: they implement unconditional and conditional branching respectively.

io.asm

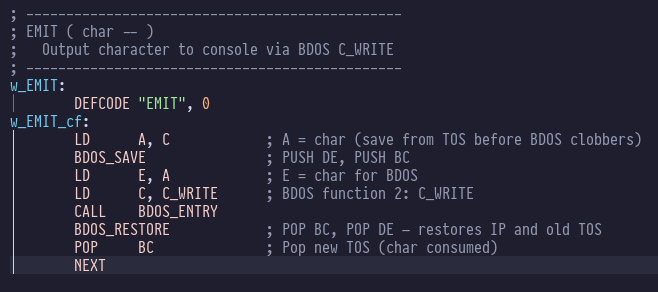

We now also have the rather exciting primitive EMIT:

Which takes a byte from the TOS (BC register again) and uses CP/M’s BDOS to output it to the terminal. This routine is mostly register juggling to get the character we want to emit in the E register and the value C_WRITE into the C register before we call the BDOS.

Note that the call to BDOS is wrapped with BDOS_SAVE and BDOS_RESTORE to protect our registers from any corruption by BDOS.

antforth.asm

Now we can see how the test is actually implemented:

Here we’re hardcoding a thread which is basically LIT 'A' EMIT and then executing it.

We’ve also got a test of DOCOL:

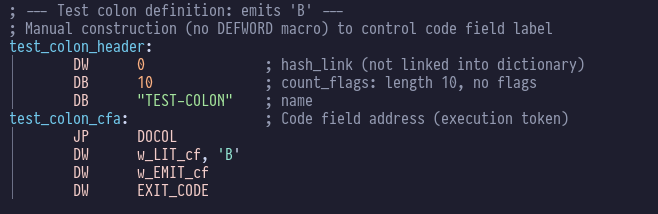

whose definition looks like:

Which is basically the same as test 1, but this time wrapped in a DOCOL - i.e. it’s a simulation of a Forth word definition.

There are a few more tests to do with branching, and then one last one to test EXECUTE:

Rather than just call BYE directly, we’re taking its address, pushing that onto the parameter stack, and then using EXECUTE to call it.
